What Are Electrical Schematics?

Electrical schematics, also known as electrical circuit diagrams or wiring diagrams, are graphical representations of electrical systems and circuits. They serve as a universal language for electrical engineers and technicians to communicate and document how a circuit functions and is constructed.

The primary purpose of electrical schematics is to provide a clear, concise, and standardized visual representation of electrical circuits. They allow professionals to understand, design, troubleshoot, and maintain electrical systems efficiently. Whether you’re working on a simple household appliance or a complex industrial system, electrical schematics are invaluable tools.

The Importance in Electrical Engineering

Electrical schematics are the backbone of electrical engineering. They play a crucial role in various aspects of the field:

• Design: Engineers use schematics to create and plan electrical systems. They can visualise how components should be connected, ensuring the circuit functions as intended.
• Troubleshooting: When electrical systems malfunction, schematics serve as diagnostic tools. Technicians can trace the flow of electricity, identify faulty components, and rectify issues quickly.
• Maintenance: Schematics aid in routine maintenance, making it easier to replace or repair components, and ensuring the system operates safely and efficiently.
• Documentation: They provide a detailed record of the circuit’s configuration, which is essential for compliance, future modifications, and historical reference.

Common Components in Schematics

Electrical schematics use a standardized set of symbols and notations to represent various components and elements within a circuit. Some of the common components you’ll encounter in schematics include:

• Resistors: Represented by a zigzag line, resistors limit the flow of current in a circuit.
• Capacitors: Displayed as two parallel lines, capacitors store and release electrical energy.
• Inductors: Shown as a series of loops, inductors store energy in a magnetic field.
• Diodes: Depicted as an arrow, diodes allow current to flow in one direction only.
• Transistors: Represented by various symbols, transistors control the flow of current in electronic devices.
• Switches: Shown as open or closed lines, switches control the flow of current by making or breaking a connection.
• Wires and Connections: Lines connecting components represent electrical connections, with different line styles indicating specific types of connections.

Understanding these symbols is a fundamental step in decoding electrical schematics. As we move forward, we’ll explore these symbols in more detail and discuss how they’re used to convey information within schematics.

Key Symbols and Notations

Symbols for Basic Components (Resistors, Capacitors, Inductors, etc.)

In electrical schematics, various symbols represent basic components and elements commonly found in circuits:

• Resistor: Indicated by a zigzag line, resistors are used to limit the flow of current in a circuit. Their resistance value is typically noted nearby.
• Capacitor: Represented by two parallel lines, capacitors store and release electrical energy. Capacitance values are usually provided alongside the symbol.
• Inductor: Depicted as a series of loops, inductors store energy in a magnetic field. The inductance value is often specified.
• Battery/Cell: Shown as a set of long and short parallel lines, batteries or cells are the power sources in a circuit. The voltage rating may be labelled.
• Fuse: Symbolized by a wavy line, fuses protect circuits from overcurrent by melting when the current exceeds a certain limit.
• Switch: Illustrated as open or closed lines, switches control the flow of current by either allowing or interrupting the connection.

Wiring and Connection Symbols

Understanding how wires and connections are represented is essential in deciphering electrical schematics:

• Conductor Crossing: When wires cross without connecting, a simple “X” is used to avoid confusion.
• Connection Node: A dot at the intersection of wires signifies an electrical connection or junction.
• Wire Crossing with Connection: A dot at the intersection of wires with no “X” indicates that the wires are connected electrically.
• Wire Junction without Connection: When wires cross without a dot, it signifies that they are not electrically connected.
• Multiple Wires: A junction where multiple wires meet is often depicted using a small numbered circle, with corresponding numbers on the wires to indicate they are connected at that point.

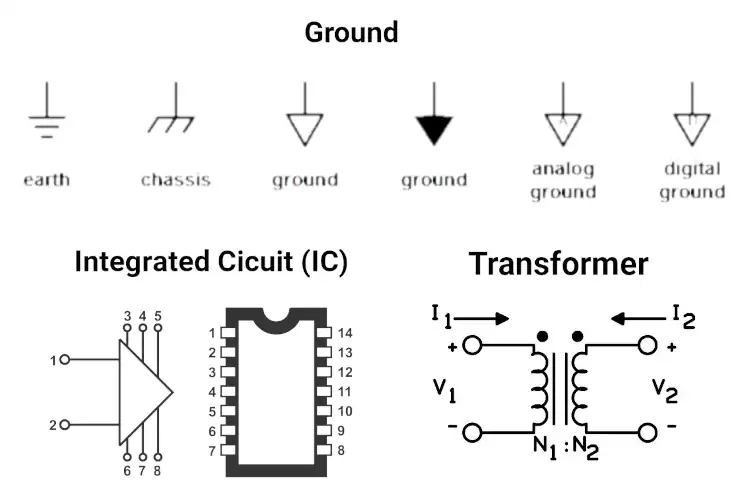

Special Symbols (Ground, Diode, Transistor, etc.)

Electrical schematics use specialized symbols to represent components with unique functions:

• Ground: A horizontal line with a triangular symbol indicates the ground or reference point in a circuit.
• Diode: Displayed as an arrow pointing towards the direction of current flow, diodes allow current to pass in one direction only.
• Transistor: Transistors can have various symbols, but typically, they consist of three layers or components and arrows to denote their properties (NPN or PNP).
• Integrated Circuit (IC): ICs are represented as rectangular shapes with pins extending from the sides. Each pin may have a label or number.
• Antenna: Depicted as a straight line with zigzag lines radiating from it, antennas represent components related to wireless communication.
• Transformer: Transformers are symbolized by two coils with a line connecting them, indicating their role in changing voltage levels.

Understanding these key symbols and notations is a fundamental step in interpreting electrical schematics. They convey vital information about component functions and connections, enabling engineers and technicians to design, troubleshoot, and maintain electrical systems effectively.

Understanding Electrical Schematic Layout

Reading Direction

Electrical schematics have a standardized layout to ensure clarity and consistency in communication. When reading a schematic, it’s essential to understand the typical reading direction.

Left to Right: In most schematics, the standard reading direction is from left to right. This means that the flow of electricity and information progresses from the left side of the page to the right.

Top to Bottom: In complex schematics or multi-page documents, the reading direction may also extend from top to bottom, with the main signal path still moving from left to right.

Understanding the reading direction helps you follow the logical flow of a circuit and trace the path of electrical signals accurately.

Signal Flow

Signal flow is a critical concept when interpreting electrical schematics. Here’s how it works:

• Input to Output: Electrical signals typically enter the schematic from the left side, representing the input or source of power. The signals then travel through various components, such as resistors, capacitors, and transistors, before reaching the output on the right side.
• Arrows and Lines: Arrows and lines indicate the direction of signal flow. Arrows usually point from left to right, showing the progression of the signal through the circuit.
• Branches and Connections: Along the way, you’ll encounter branches where signals split or merge. These junctions are represented by dots or connection symbols. Pay close attention to these points to understand how signals are distributed or combined.

Page Layout and Titles

Electrical schematics are often organized into pages to accommodate complex circuits. Here are key elements of page layout and titles:

• Page Numbering: Multi-page schematics should be numbered sequentially (e.g., Page 1 of 3, Page 2 of 3) to maintain order and ensure all pages are considered.
• Title Block: Each page typically includes a title block that provides essential information about the schematic. This includes the project or circuit name, revision date, sheet number, and the name or logo of the designer or organization.
• Page Orientation: Schematics are usually oriented in landscape format, allowing for a wider view of the circuit. The title block is often placed in the bottom right corner.
• Page References: When a circuit continues onto another page, references or arrows may be included to guide you to the next page. These references ensure you follow the circuit’s logical sequence.

Understanding how to navigate multi-page schematics and interpret the information in the title block helps you maintain context and access critical details about the circuit’s design and documentation.

By grasping these aspects of electrical schematic layout, you’ll be better equipped to read and comprehend the structure of schematics effectively. It’s an essential skill for anyone working with electrical systems and circuits.

Interpreting Wiring and Connections

Series and Parallel Connections

Understanding how components are connected within a circuit is crucial in reading electrical schematics. Two common types of connections you’ll encounter are series and parallel:

Series Connections:

In a series connection, components are connected end-to-end, creating a single pathway for current to flow. The same current passes through each component in the series. This connection increases the total resistance and decreases the total current in the circuit.

• Symbol: Components in series are typically drawn in a straight line, one after the other.

Parallel Connections:

In a parallel connection, components share two common points, allowing current to take multiple pathways. This connection maintains the same voltage across all components but divides the current among them.

• Symbol: Components in parallel are drawn with branches connecting to a common node, indicating their parallel arrangement.

Junctions and Nodes

Junctions and nodes are key elements in electrical schematics:

• Junctions: Junctions are points in the schematic where multiple wires meet but are not electrically connected. They are represented by a dot. Junctions help avoid confusion when wires cross without making electrical contact.
• Nodes: Nodes, on the other hand, represent points where multiple wires or components connect electrically. Nodes are often notated with a number or label to indicate that all connected elements are at the same voltage potential.

Understanding the difference between junctions and nodes is crucial when tracing electrical connections and ensuring that components are properly connected in a circuit.

Wiring Codes and Conventions

Electrical schematics adhere to specific wiring codes and conventions to maintain consistency and clarity:

• Colour Coding: Different colours are used to represent wires with specific functions. For example, red may indicate power supply wires, black for ground, and various colours for signal or control wires. Refer to the legend or accompanying documentation to decipher wire colours.
• Wire Labels: Wires are often labelled with letters or numbers to identify their purpose or connection point. These labels correspond to references in the schematic or documentation.
• Arrows: Arrows on wires indicate the direction of current flow. They are particularly useful in complex schematics to understand signal flow.
• Wire Crossings: When wires cross without connecting, an “X” or another notation may be used to prevent confusion.

By adhering to these wiring codes and conventions, electrical schematics maintain consistency across different designs and make it easier for professionals to interpret and work with them effectively.

Understanding how series and parallel connections, junctions, nodes, and wiring conventions are represented in electrical schematics is essential for accurate interpretation and troubleshooting of electrical circuits. It allows engineers and technicians to follow the flow of current and connections within the circuit with precision.

Tips for Effective Schematic Reading

Interpreting electrical schematics can be a daunting task, but with practice and a few helpful tips, you can become proficient in this essential skill. Here are some tips for effective schematic reading.

Practice and Familiarization

• Start Simple: If you’re new to electrical schematics, begin with simple circuits and gradually work your way up to more complex ones. This incremental approach will build your confidence and understanding.
• Study Existing Schematics: Analyze schematics from textbooks, online resources, or real-world projects. Take the time to understand how different components and connections are represented.
• Create Your Schematics: As you gain confidence, try drawing your own schematics for simple circuits. This hands-on practice will reinforce your understanding.

Using Colour Coding

• Understand Colour Conventions: Familiarize yourself with colour coding conventions commonly used in schematics. For instance, red often signifies power, black is for ground, and other colours may represent signal or control wires.
• Highlight Critical Elements: Use coloured pens or digital tools to highlight important components or connections. This visual aid can make it easier to trace circuits and spot key information.
• Colour-Coded Notes: Add colour-coded annotations to your schematics to explain complex sections or highlight troubleshooting points.

Utilizing Software Tools

• Schematic Software: Consider using schematic design software like Eagle, KiCad, or Altium Designer. These tools provide a user-friendly interface and real-time error checking, making it easier to create and read schematics.
• Zoom and Navigation: When working with digital schematics, take advantage of zoom and navigation features to examine details closely. This can be especially helpful for large or intricate diagrams.
• Search Functionality: Many digital tools offer a search function that allows you to quickly locate components or connections within the schematic.
• Simulators: Some software tools include circuit simulators, allowing you to test and validate your schematic designs virtually. This can be a valuable learning tool.

By incorporating these tips into your schematic reading practices, you’ll enhance your ability to interpret and work with electrical schematics efficiently. Remember that proficiency comes with time and experience, so don’t hesitate to seek guidance and continue learning in this field.

Safety Considerations

Safety is paramount when working with electrical schematics, and it extends to both personal well-being and equipment integrity. Understanding and implementing electrical safety protocols is crucial before engaging with any circuit.

Adequate training and knowledge of voltage levels and potential hazards are fundamental prerequisites. Moreover, wearing appropriate Personal Protective Equipment (PPE), such as safety glasses, insulated gloves, and non-conductive footwear, serves as a vital defence against electrical shocks and arc flash incidents.

Ensuring electrical safety begins with isolating power sources and verifying that circuits are de-energized before any work commences. Lockout-Tagout (LOTO) procedures should be employed to prevent inadvertent energization of equipment.

Proper grounding is another essential element, guaranteeing a safe path for electrical currents in the event of a fault. Additionally, a thorough understanding of fuses and circuit breakers is necessary to safeguard against overcurrent and short circuits.

Beyond electrical safety, accuracy in interpreting schematics is equally critical. It is imperative to verify the accuracy of schematics and double-check connections against them to prevent errors that could lead to equipment damage or hazards.

In summary, prioritizing both electrical safety and accuracy ensures a safer working environment and minimizes risks when dealing with electrical schematics.
